Neuheiten NAT Audio

Phono

Vacuum I.N.

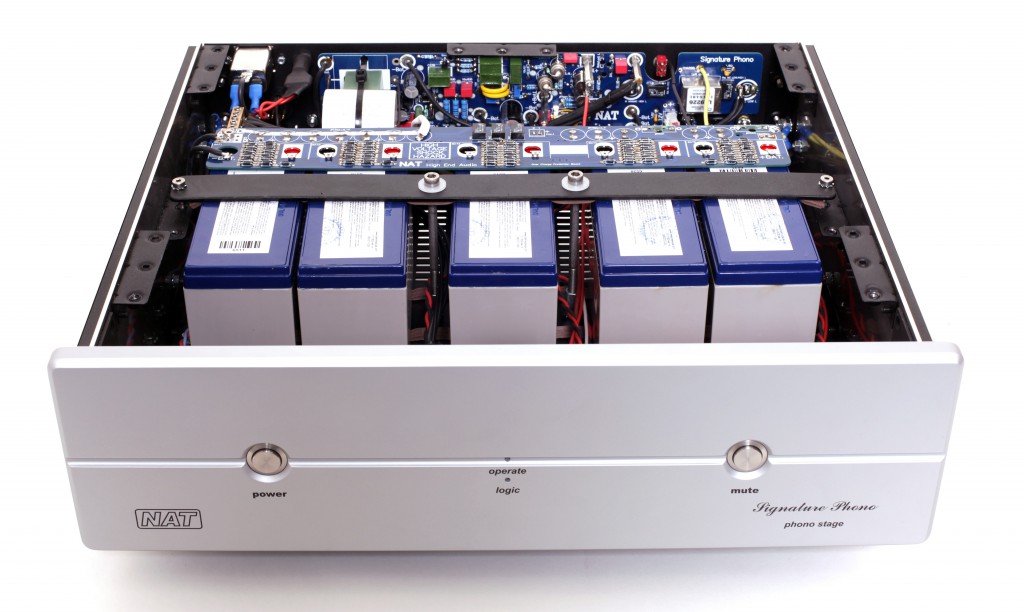

Full Battery Powered Vacuum Tube MM Phono Stage

The NAT Audio flagship phono stage!

NAT set a new standard in phono stage state-of-the art product by new approach-vacuum based inverse network realised in model Vacuum I.N. . Standard inverse network is based on RC or even better RLC type as main part of the signal path. NAT put vacuum field medium instead. Vacuum I.N is based on 14 vacuum tubes in full absolute zero feedback configuration to form uncompromised MM phono stage!

Battery supply for plate voltage is used for the low noise triode tubes that lasts over 10 000h. All tubes are by military and N.O.S. (new old stock) type. Even all tubes filament are powered by batteries!

Hand coiled output transformers as well as input and output chokes (6 separated magnetic unit) form in Vacuum I.N.  simplest signal paths as possible! Magnetic material is the best possible by today audiophile standard: nano-crystalline!

Special constructed output transformer is reconfigurable from pure single-ended (RCA) to pure balanced (XLR) operation in Vacuum I.N. .

System of battery charging is fully automatic.

AC voltage (for battery charging and logic) is filtered in Vacuum I.N. by separate ultra low magnetic radiated transformers/power supply units.

Vacuum type (NAT original approach) equalization is applied regarding the philosophy of zero feedback. Signal-to-noise ratio is excellent, partly thanks to battery supply.

With lower output impedance than standard, Vacuum I.N. may easy drive interconnect cable of reasonable lenght.

Best quality gold plated teflon isolated PCB is used in Vacuum I.N. MM phono stage.

High quality gold plated teflon isolated connectors, both input and output are used in phono stage.

Each Vacuum I.N. is hand crafted device with burn in test period of over  100 hours.

Quality of electronic components that is used inside Vacuum I.N. are at high level – military grade capacitors as well as tubes, teflon based gold plated PCB, high grade batteries, Vishay 0.1% resistors, electrolytic capacitors for 105Cof operating temperature, all signal magnetic unit based on nano-crystalline core …

Vacuum I.N. device works properly at world wide AC line voltage from 100 – 250 VAC, 50 – 60 Hz (different voltages set in factory only).

To confirm, Vacuum I.N. represent new original innovative approach by NAT globally and set a new standard for phono reproduction-ONE OF A KIND UNIT!

Find a new dimension in phono reproduction!

Technical Specification
Name Value
Frequency Response 10 Hz to 100 kHz
Noise < -85 dB „A“ weighted
Gain 39 dB MM
RIAA Accuracy ± 0.5 dB
Channel Unbalance < 0.2 dB
THD & N < 0.2 %
Input Impedance 47 kohms ( 100 kohms option )
Stereo Separation > 96 dB @ 10 kHz
Tube Complement 14 x nuvistor triode
Phase Status (non inverted) 0 degree
Output Impedance < 900 ohms @ 1kHz
Power Requirements 100 VAC to 240 VAC @ 50 to 60 Hz, max. 30 VA
Dimensions 19″ (483 mm) wide x 22″ (560 mm) deep x 6.7″ (170 mm) high
NET Weight approx. 88 lbs. (40 kg) unpacked
TOTAL Weight approx. 110 lbs. (50 kg) packed in flight case

Preis : 17.950 Euro

 Achtung, diese Reference Phonostufe ist nur eine RIAA/Phono MM Stufe, für den Betrieb eines MC System ist ein Übertrager notwendig.

 Diese 4 Übertrager gibt es neu von NAT :

 NAT MCX – MC step-up stage

Multifilar winding technique as we used in our step-up transformers is the best choice for the excellent frequency response!

NAT MCX, MCXX and MCXXX are made on the base of nano-crystalline core with equal gain in both channel! Due to special winding technique we reach the ZERO mismatch between channel – 0dB, in other words there is no any differences in gain between left and righ channel!

All of our transformers are hand coiled!

Triple shielding is our way to protect the transformers from the external field „pollution“. There is mu-metal shielding with double 4mm copper plates and aluminium chassis as the outside part!

NAT MCX is large size hand coiled nano-crystalline core based MC step-up transformer with 10 times (20dB) of gain.

It offers both balanced (XLR) and unbalanced (RCA) inputs. Fine tuning of load resistance can be done with additional parallel input RCA connectors. It is suitable for cartridge from 0.4 – 0.6 mV of output voltage.

Technical Specification MCX 1 : 30 = 500 Ohms
Name Value
Frequency Response (source impedance<50 ohm) 4 Hz to 100 kHz
Input impedance (ref. to 47k ohm input) 500 ohms
Gain 20 dB (x10)
Dimensions 8.9″ (225 mm) wide x 6″ (150 mm) deep x 4.7″ (120 mm) high
NET Weight approx. 12 lbs. (5.5 kg) unpacked

Preis : 2.350 Euro

 NAT MCXX is large size hand coiled nano-crystalline core based MC step-up transformer with 20 times (26dB) of gain.

It offers both balanced (XLR) and unbalanced (RCA) inputs. Fine tuning of load resistance can be done with additional parallel input RCA connectors. It is suitable for cartridge from 0.2 – 0.3 mV of output voltage.

Technical Specification MCXX 1 : 20 = 125 Ohms.
Name Value
Frequency Response (source impedance<50 ohm) 8 Hz to 70 kHz
Input impedance (ref. to 47k ohm input) 125 ohms
Gain 26 dB (x20)
Dimensions 8.9″ (225 mm) wide x 6″ (150 mm) deep x 4.7″ (120 mm) high
NET Weight approx. 12 lbs. (5.5 kg) unpacked

Preis : 2.350 Euro

NAT MCXXX is large size hand coiled nano-crystalline core based MC step-up transformer with 30 times (~30dB) of gain.

It offers both balanced (XLR) and unbalanced (RCA) inputs. Fine tuning of load resistance can be done with additional parallel input RCA connectors. It is suitable for cartridge from 0.12 – 0.18 mV of output voltage.

Technical Specification : 1:10 = 50 Ohms
Name Value
Frequency Response (source impedance<50 ohm) 10 Hz to 70 kHz
Input impedance (ref. to 47k ohm input) 50 ohms
Gain ≈30 dB (x30)
Dimensions 8.9″ (225 mm) wide x 6″ (150 mm) deep x 4.7″ (120 mm) high
NET Weight approx. 12 lbs. (5.5 kg) unpacked

Preis 2.350 Euro

 NAT MCXS Reference Silver OFC Nanocrystalline core wired Transformer MC Stage with pure balanced input, gain 20 dB (with pure balanced input),

Übertrager 1:10 = 50 Ohm, Frequenzgang 10Hz bis 70 kHz, Preis : 3.500 Euro



Außerdem gibt es eine neue vollständig überarbeiteten Vorverstärker :

Symetrical New Balanced Serie 2 mit neuer sehr aufwändiger Lautstärkeregelung.

Es ist außerdem etwas gelungen, was in dieser Zeit sehr selten geworden ist,

das Gerät ist deutlich verbessert worden, aber der VK Preis ist um 1.000 Euro gesunken auf 5.995 Euro.



Außerdem sind folgende Verstärker mit der neuen HPS Netzteiltechnolgie jetzt lieferbar :

Single HPS GM 70 Vollverstärker, Transmitter HPS SE Monoblöcke, Magma M HPS SE Monoblöcke,

Magma HPS SE Monoblöcke.

Hier sind die VK Preise alle gleich geblieben.



NAT MCXX is large size hand coiled nano-crystalline core based MC step-up transformer with 20 times (26dB) of gain.

It offers both balanced (XLR) and unbalanced (RCA) inputs. Fine tuning of load resistance can be done with additional parallel input RCA connectors. It is suitable for cartridge from 0.2 – 0.3 mV of output voltage.

Technical Specification
Name Value
Frequency Response (source impedance<50 ohm) 8 Hz to 70 kHz
Input impedance (ref. to 47k ohm input) 125 ohms
Gain 26 dB (x20)
Dimensions 8.9″ (225 mm) wide x 6″ (150 mm) deep x 4.7″ (120 mm) high
NET Weight approx. 12 lbs. (5.5 kg) unpacked



NAT MCXXX is large size hand coiled nano-crystalline core based MC step-up transformer with 30 times (~30dB) of gain.

It offers both balanced (XLR) and unbalanced (RCA) inputs. Fine tuning of load resistance can be done with additional parallel input RCA connectors. It is suitable for cartridge from 0.12 – 0.18 mV of output voltage.

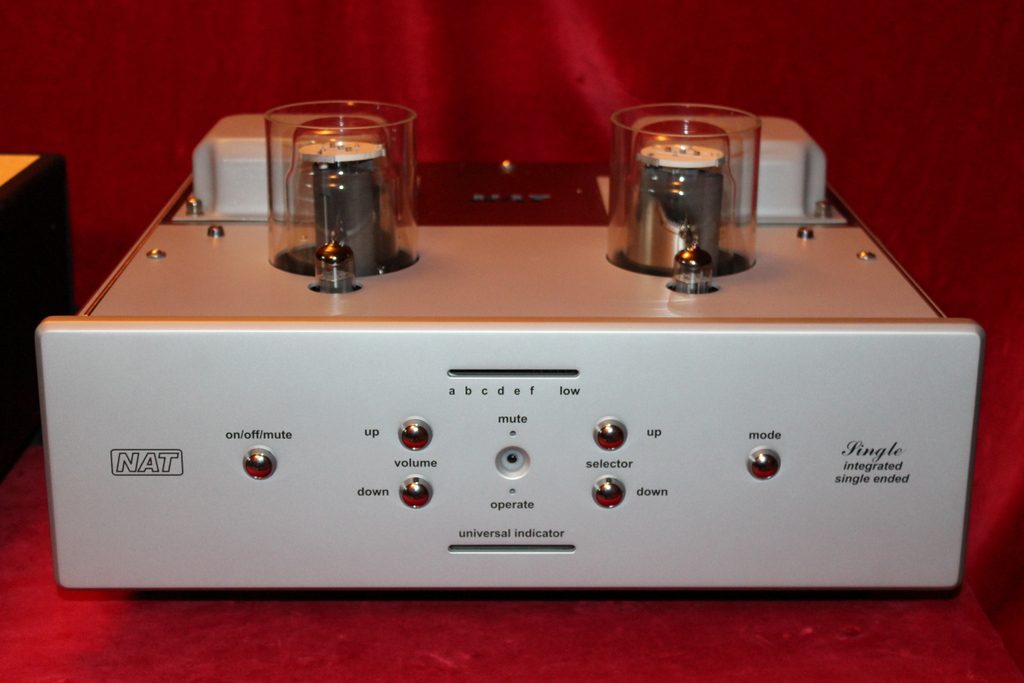

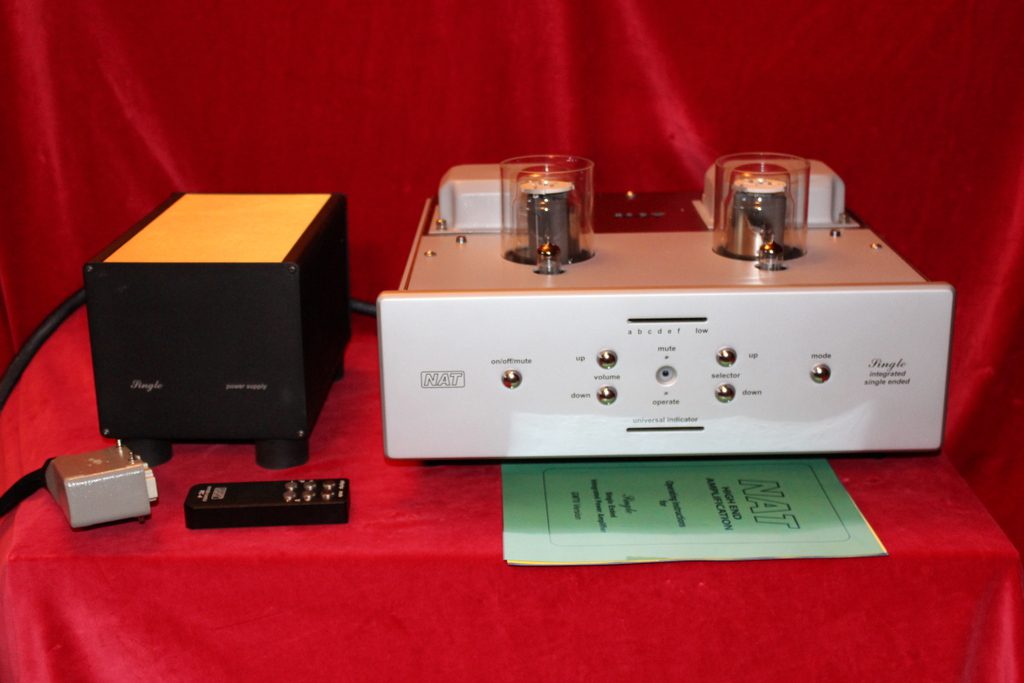

NAT – Single Ended Vollvertärker

Der neue NAT – Single Ended Vollverstärker mit 2 x 50 Watt sinus (Triodenleistung!) ist endlich da..

Dieser Triodenverstärker ist mit einem großen extra Netzteil aufgebaut und kann mit vielfach teureren Vorverstärker/Endverstärkerkombinationen mithalten.

Technische Daten:

  • Type Single Ended Tube Base Zero Global Feedback
  • Power 50 W @ 8 ohms
  • Frequency Response 10 to 60 kHz, -3 dB; 20Hz to 20kHz, +/-0,5dB
  • Noise 90 dB IHF reference to 1W
  • Gain 35 dB (X 55) Phase status: non-inverted (0 degree)
  • THD & N < 0.1 %
  • Input Impedance >15 kohms
  • Output Impedance <1.6 ohms (damping factor >10 reference to 16ohms load @zero feedback)
  • Stereo Separation >95 dB @ 10 kHz
  • Tube Complement 2 x 6N23P (E88CC) & 2 x GM70 per unit
  • Power Requirements 100VAC to 240VAC (50 to 60 Hz), max. 370 VA
  • Dimensions 19″ (483 mm) wide ´ 15.7″ (400 mm) deep ´ 10.2″ (260 mm) high
  • NET Weight (Control Unit) approx. 110 lbs (60 kg) unpacked
  • TOTAL Weight approx. 133 lbs (70kg) total with transport wooden box

Design Features:

  • single ended type – integrated amplifier
  • zero feedback design
  • triode direct-heated output type
  • 50 W of pure class A
  • full dual mono construction
  • custom designed 1.000W encapsulated power transformer
  • full stabilisation for all amplifier stages
  • two tubes (NOS) for driver purposes
  • separate toroidal transformer for digital control
  • dot-matrix display (15 level of intensity with turn off light mode)
  • remote control made from solid block of aluminium
  • automatic bias
  • adaptive bias (to control dissipation of the output stage)
  • standby function
  • relay (silent type) attenuation network
  • all aluminium modulated chassis
  • teflon isolated connectors

Vorführbereit auch gegen unsere alte Vollverstärkerreferenz Audio Note Jinro.

Einführungspreis bis 31.7.2016 : 6.990,- Euro

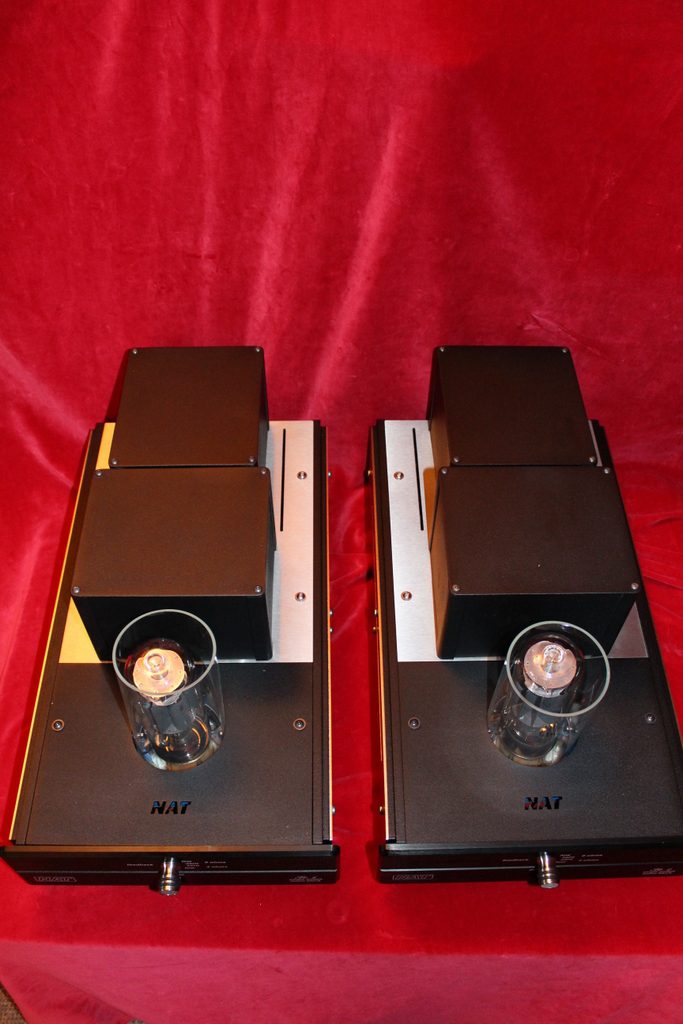

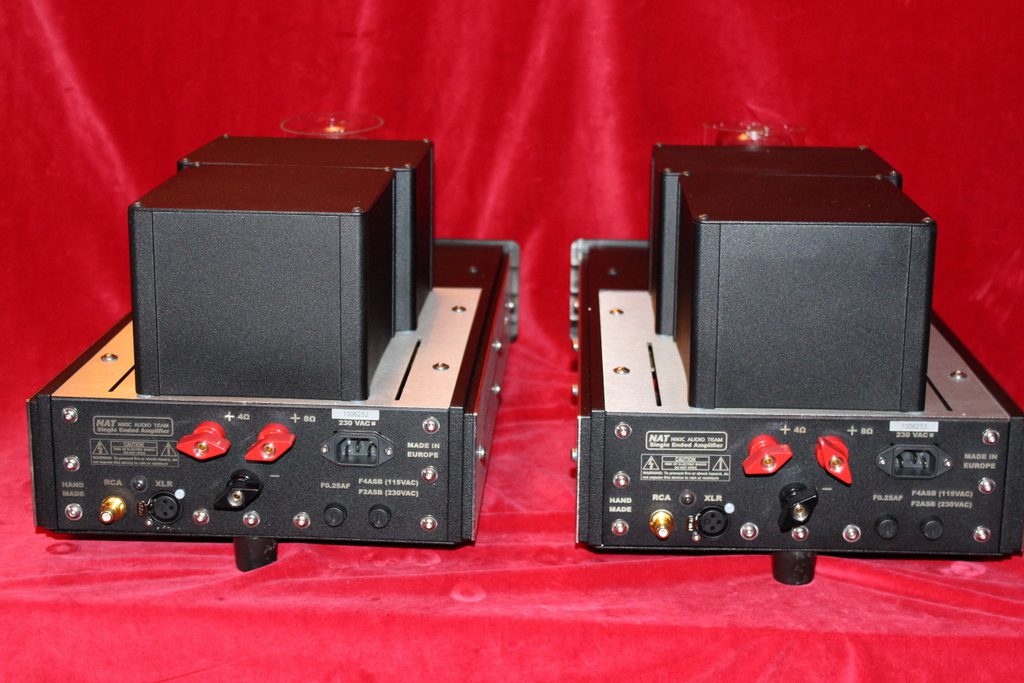

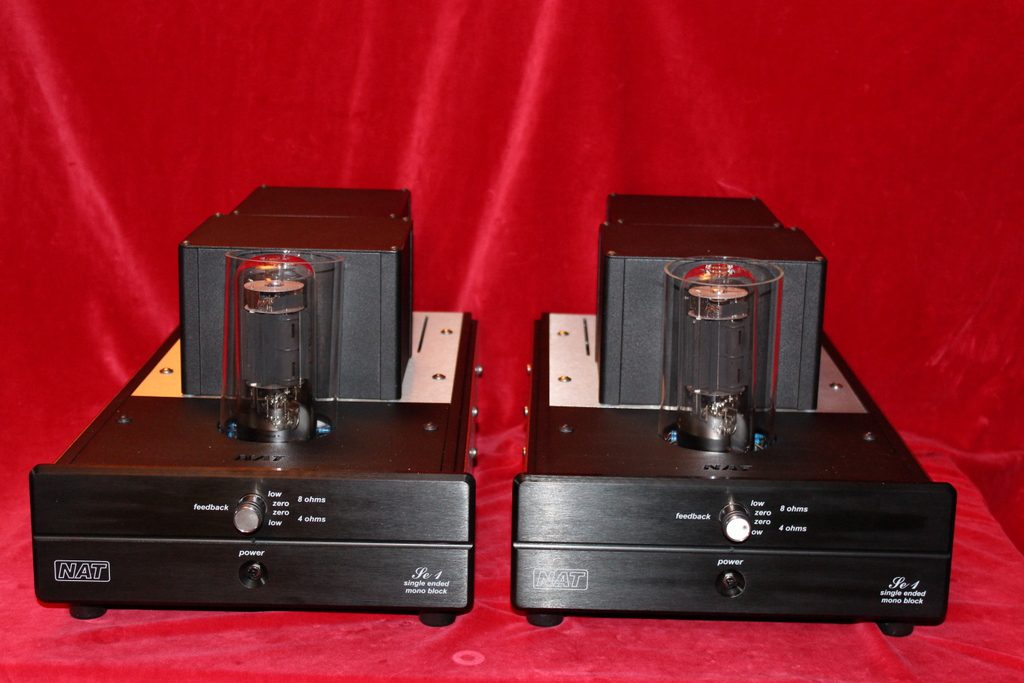

NAT SE 1-classic 211-2016  Single Ended Monoblöcke

22 Watt single Ended Monoblöcke mit KR Audio 211 Triode.

Traumhafter Klang nicht nur für Hörner und andere Wirkungsgradstarke Lautsprecher.

Bei uns vorführbereit im Vergleich mit vielen anderen guten Verstärkern!

Technische Daten:

  • Type Single Ended Class „A“ Triode
  • Power Output 22 Watts @ 1 kHz 40 ohms or 8 ohms taps
  • Frequency Response 5 Hz to 70 kHz
  • Input Impedance 100 kohms parallel with 300pF
  • Input Sensitivity 1 V RMS for 20 Watts Output @ zero feedback
  • Rise Time 5.0 microseconds
  • Noise 108 dB below rated output „A“ weighted
  • Tube Complement 1 x KR Audio 211
  • Power Requirement 240 Volt.
  • Dimensions 300 mm wide x 520 mm deep x 260 mm high
  • NET Weight Pro Stück 25 kg netto, 35 kg verpackt in Holzkiste

Einführungspreis: 6.990,- Euro pro Paar, inklusive KR Audio 211 Röhren bis 30.7.2016

Quelle www.audio.de > 078/2014

Quelle www.audio.de > 07/2014

NAT Symetrical SE1
Himmel und Hölle
Hochspannung, Gefahr, Hitze, Gewicht, der Preis: Für diese Verstärker des serbischen
Großröhren-Spezialisten NAT gilt es, manche Unannehmlichkeiten in Kauf zu nehmen.
Und wofür das alles? Für das einzig Wahre: geradezu überirdischen Klang!

Test: Johannes Maier

pdf  Testbericht / Report NAT Symetrical SE1

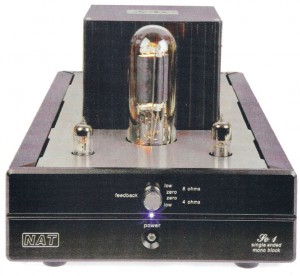

natsellMKIIVALVE AMPLIFIER
NAT Sel MKII

No, this isn’t Japanese exotica – it’s a world-class, single-ended triode powerhouse from Serbia! If you’ve had your fill of 3006s, then here’s a real he-man’s amp Review: Ken Kessler Lab: Paul Miller

pdf_eng Testbericht / Report www.hifinews.co.uk – 10/2010

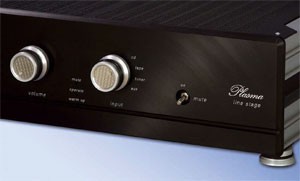

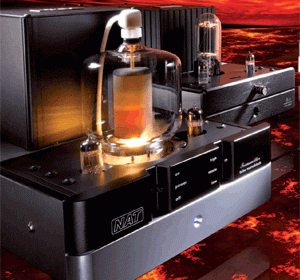

nat_se1_plasmaNAT SE1 , NAT Plasma
Yes, here comes wonder kid from ex-Yugoslavia again.
After all, considering better tubes, read this: especially expensive tubes. lese mehr/ read more

Quelle: Fox Audio, www.foxaudio.nl

pdf_engTestbericht / Report Fox Audio

gfds31GFDS 31 • Valutare • NAT SIGNATURE
Difficult as the final product of forces of large and beautiful, mighty and powerful, extremely quiet and musically compelling. Preamplifier ‘no compromise’ is well priced compared to theread more

pdf_eng  Testbericht / Report
